Discussion Starter · #1 ·

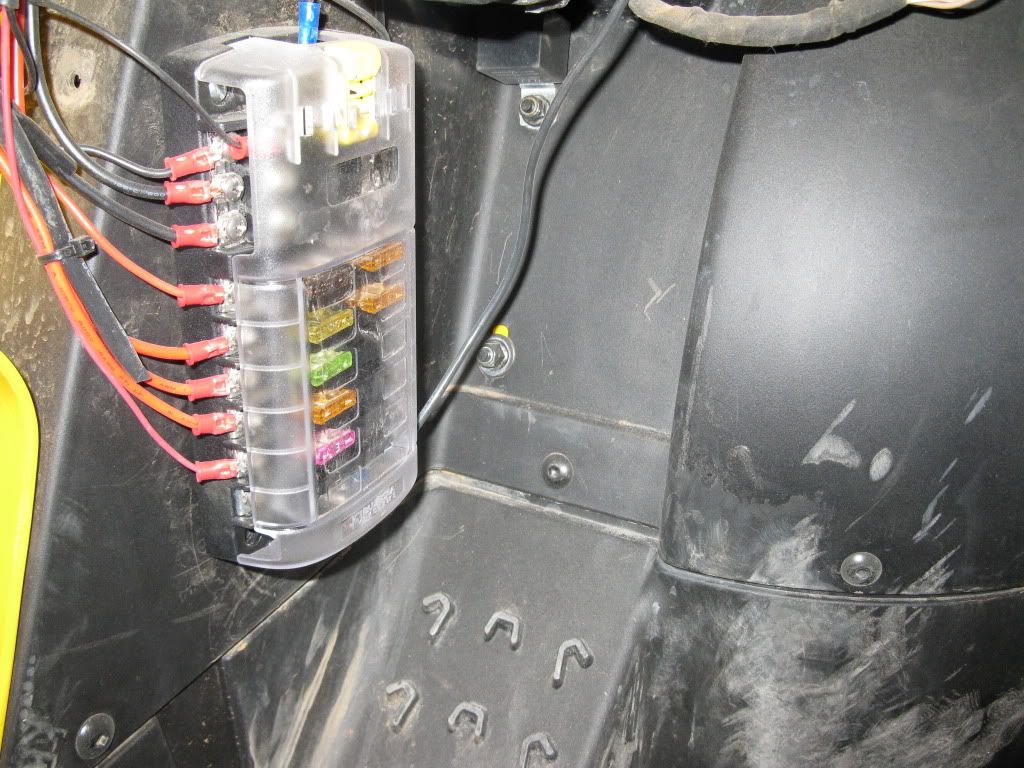

Installed a new fuse panel for all the crap I have added.




·
Registered
Joined
·
305 Posts
Thank You Charlie. I was wondering How I was going to install the Light Bar electrics.
Im assuming the Blue wire goes straight to the Battery. Did it come with the Kit or was that your choice? What Gauge?


·
Registered
Joined
·
37 Posts
Discussion Starter · #3 ·
Thank You Charlie. I was wondering How I was going to install the Light Bar electrics.
Im assuming the Blue wire goes straight to the Battery. Did it come with the Kit or was that your choice? What Gauge?

The fuse box did not come with any wires. The supply wire is 10 gauge stranded. It also has a terminal for grounding which I took straight to the frame.

All of the accessories that I have hooked to it, including the 30" LED light bar draw light amp as compared to say the starter.

I purchased the box at West Marine for about $50. The box has 12 terminals (12 hot, 12 grounds) but they sell a 6 terminal also.


·
Registered
Joined
·
37 Posts
Discussion Starter · #5 ·
Thank You Charlie. You da man. I know someday they WILL let you out.
I think I would rather stay in here, three hots and a punk in the bunk.......free of charge.....can't get that at the Holiday Inn.
